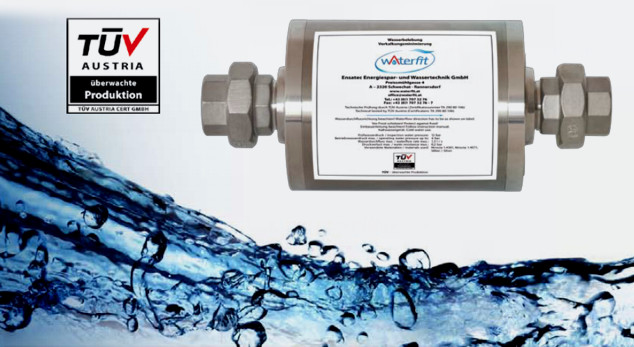

Technical Waterfit details
If you need another dimension as shown here there will be also a solution.
| Waterfit Dimensions |
1/2" |
3/4" / 1" |
2" |
| Length (incl.connections *) |
86 mm |
271 mm *) |
430 mm *) |
| Diameter |
70 mm |
114 mm |
168 mm |
| Circumference |
220 mm |
359 mm |
529 mm |
| Weight |
1,4 kg |
6 kg |
23 kg |
| Tested to pressure |
12 bar |
12 bar |
12 bar |
| Operating pressure max. |
6 bar |
6 bar |
6 bar |
| Water flow max. |
1 l / s |
1,5 l/s |
5 l/s |
| Pressure loss max. |
0,2 bar |
0,2 bar |
0,2 bar |
|
